Friday, October 9, 2020

Tour bus monitoring system solution and case study

Tour bus monitoring industry status and needs


With an increasingly prosperous from bus transport industry in modern times, it pose a big pressure on interior management of transport company and traffic administration of social security scope.

Originally, simple device -GPS positioning were mounted onto tour bus just for location tracking, without any surveillance data relevant with fatigue attention, collision warning,speed control, overload supervising, dispatch from center,thievery, midway emergencies and other kinds of accidents. Therefore the tendency is bringing obvious breakthrough for advanced solutions supplement which with the purpose of replace of that stereotyped solution.

Under the circumstances of 4G high speed wireless transmission, extensive applications have been covered, the crucial parts include real-time monitoring of video/audio,remotely supervise all activities from center,checking oil volum and record counting of passengers, timely alarm trigger and upload to server when emergency happen etc. All are with objective to create safe travel environment and to improve scheduling capabilities for vehicle management.

Overview of the Tour Bus Monitoring System Solution

This industrial system is based on 1080P high definition hard disk mobile dvr recorder with 4 channels surveillance which embedded Hisilicon 3520 chipset, mainframe was designed with anti-vibration solid shell and high industry level internal structure which operated by advanced linux GUI system.. It is being powerful comprehensive solution by combine of solid hardware group (mdvr,vehicle camera,vary functional accessories etc), high performance firmware and powerful platform for access data.

As being security system, all applications are linked with two main mission: prevention and emergency handle.All storage data will be evidence for any accidents analyse prior to power off, to prevent the occurrence of unnecessary dispute cases and to boost safety index from transportation environment.

Tour bus monitoring System setup diagram

The whole system is divided into three part of contents:

(1) Front end device for surveillance data input
(2) Server & networks for data transmission
(3) Management platform for access

1. MDVR


Hot sale solution for vehicle surveillance –

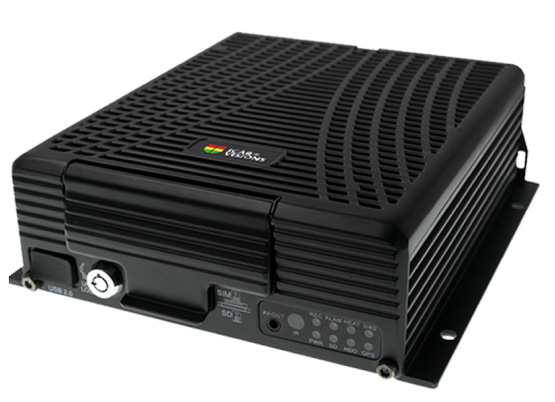

High level HDD mobile dvr with sturdy shell – model JH4-HD-GFW

Key features:
  • Support 4 channel 1080P AHD camera with addtional 1channel 1080P IP camera input;
  • Support hard disk slot up to 2TB with 128G sd card backup;
  • Support 4G/3G/WIFI optional for real time GPS tracking &monitoring;
  • with 1 port for RS485, 2 ports for RS232 for sensors integration, with 1RJ45,2 USB;
  • With 8 channels alarm input & 1 channel output.

Outstanding functions:

Can connect additional one channels 1080P IP camera;

Support multi peripheral docking functions including fireproof blackbox,UPS,fuel sensor, temperature sensor,LED panel,RFID,panic button,intercom handle etc;

With safety locking design for hard disk protect and anti-shock feature.

2. Camera and main sensors


Dome IR camera for driver monitor and inside of vehicle


MINI camera without IR for front view avoid reflect onto windshield


Rear camera for backward monitor


LED control panel

This accessory will be extended to a specific location for quick and convenient viewing of major working states of the device to prevent loss of surveillance data which caused by these actions, including power supply, video recording, hard disk, alarm, infrared, video loss and abnormal status.


Fireproof black box

This Fireproof Black Box connects to MDVR, withstand a fire burning at 1100℃ for 15 minutes and water under 100 meters. Vehicle crashes sometimes result in fires. With this fire resistant design, the data could be recorded safely in the fire or flood, to prevent the subsequent crash investigation from getting much more difficult and less productive.


Disaster Resist
  • Fire
  • Shock
  • Extrusion
  • Flood
  • Electric magnetic
  • Freezing temperature
Features
  • Fireproof (1100℃-15min) and Waterproof (100M)
  • With super speed USB2.0 port
  • Fit for Aviation Round Connector M12-5PIN
  • Solid state eMMC memory core
  • To connect with PC, DVR, EDR, T-BOX
  • Easy data recover after disaster
Fuel sensor for oil management

——> Advantage of Ultrasonic fuel level sensor


High accuracy:

Resolution of sensor’s measurement for fuel height is 0.1mm.And its measurement accuracy is ±0.5%. It keeps higher accuracy even in highest or coldest outside environment.

Excellent stability:

Being different from direct-contact measurement like float-type,pressure-type,magnetic sliding-type, untrasonic fuel level sensor adopts non-contact measurement, which can avoid pollution and corrosion from fuel and keep stability in a long period of time.

Easy installment and maintenance:

Users only need to install the sensor probe on lower surface of fuel tank,don’t need to change its original measurement system or punch hole for it. Its original fuel meter operates as usual.

——> Technical parameters



——> Application range

The ultrasonic fuel level sensor is used for digital recording vehicle refueling, to prevent driver stealing oil , avoid the waste of resources, improve operational efficiency, and improve the traffic safety, strengthen the operation and management level.

This sensor is applicable to various types of vehicles ,especially for long-distance buses/coach/

Tour bus.

——> Installation of Ultrasonic Fuel Sensor and Mobile DVR

Cable connection===>client software setting==> device setting of mdvr==>monitor data

3. Monitoring from PC and mobile based on server setup

IVMS is a centralized management, monitoring and high-level system on a wireless network based on proprietary protocols and mini-label protocols. Based on high-quality, high-efficiency centralized and distributed network management, IVMS is based on network transmission of multimedia information such as video, audio and data, and performs real-time monitoring, GPS positioning, video storage, vehicle scheduling and alarm warning for users.



The IVMS Server Network can support up to 50,000 vehicles monitoring,covering all following functions:
  • Vehicle information management system
  • Quickly locate and track vehicles quickly via GPS information, displays real-time vehicle status display online and statistical interpretation of data collected
  • Alarms and Alerts information statistical functions
  • Real-time remote audio and video surveillance
  • Real-time vehicle front end image capture function
  • Two-way voice intercom, vehicles broadcast function
  • Pan Tilt Zoom (PTZ) remote control function
  • Vehicle’s historical tracking playback function
  • Remote video search, download and playback capabilities
  • Depending on the configuration program, the storage server automatically snap pictures, automatic recording, occur after alarm linkage, automatic SMS and mail to notify the user Alarm Linkage (Emergency button alarm, Video signal alarm, Unauthorized unlock alarm, Hard disk-error alarm, Over speed alarm, Motion detection alarm, Long idling time alarm, Temperature alarm, GPS signal lost alarm, IO alarm (custom), Electronic map lock alarm.
  • Assets Report Description
  • iPhone and ANDROID mobile smart phone Client Support

We ICARVISIONS

Based on more than ten years of dedication in vehicle surveillance industry and such brilliant achievement on multies practical applications, ICARVISIONS won a real higher reputation in this vehicle security supplying market compare to 99% of competitors, our standard mobile dvr systems are exclusively designed aim at dealing with mainstream requirements from transport industry.

With leverage of strong R&D power as being manufacturer, all our hardwares, firmwares and softwares are designed by our own invention patents, besides,we never stop provide customizable solutions to meet customers various specified needs.


more informations: https://www.icarvisions.com/public-transport/case-study-coach-tour-bus-680.html

Tuesday, September 29, 2020

Police Car monitoring system solution and case study

Case Study: Law enforcement Picture1

Case Study: Law enforcement Picture2

Why do we need MDVR security management for the police vehicle ?

Police vehicle MDVR monitoring solution with the basic functions for example vehicle tracking and record video in the entire process of the operation. In this way, it can prevent the police from breaking the law and regulations when they handling the incident. All the data can be used as evidence to distinguish responsibilities when police officers conflict with the crowd thus to supervise police officers so it can build a good reputation of the government. With the 4G wireless monitoring system, police officers centre room can check the geographic location and operation status of police cars in real-time through the software, but also have notification when emergencies happened.


Case Study: Law enforcement Picture3

4 channels is important for the police vehicle

The first camera JA-MC900 with dual lens will be use to record of the driver and forwarding. It can be used to trigger recording and take the photo. MDVR will upload the data to the system through 4G. so that the police car is no longer just a separate vehicle, but also a temporary command centre. The first camera plays an important role when identifying pedestrians and vehicles around. The intelligent forensics has greatly released the pressure of traffic law enforcement.


The second camera JA-MC510 is focusing on the cabin area where we have to monitor the prisoner.


The 4th channels camera JA-MC018 is take care of the rear view area.

Hardware Configuration

Case Study: Law enforcement Picture4

Case Study: Law enforcement Picture5

Installation of cameras

Case Study: Law enforcement Picture6

System configuration

The whole system includes hardware, wireless command and software. Hardware mainly includes cameras, MDVR. Wireless part is GPS,4G and WiFi. The software will be server software and central monitoring IVMS software.


Case Study: Law enforcement Picture7

Key function of the solution

Case Study: Law enforcement Picture8

Useful accessories

Case Study: Law enforcement Picture9

Useful I/O sensor for trigger REC

Case Study: Law enforcement Picture10

MDVR with 8 sensors input which allows the trigger from alarm speaker, the brake, door open etc.

WiFi auto download video solution

Case Study: Law enforcement Picture11

Case Study: Law enforcement Picture12


Configure the WiFi automatic download server in the parking lot, which the MDVR can automatically upload the video to the server storage.


WiFi auto-download is a perfect wireless solution to store the video data. In this case, the user doesn’t need to go to the parking lot and take out the HDD or SD card from the MDVR.

About Platform monitoring center software management

The server monitoring centre composed of the IVMS server group, IVMS management software, client software.


The monitoring centre software platform composed of the IVMS server software, IVMS client software, and App. It will work through the public or private network as the data source which can realize real-time monitoring remotely. Include recording, and snap picture of multiple vehicles at the same time. Also you can do video search, download, analysis playback. The control centre can get useful alarm information, combined with GIS electronic map quickly. It can realize the intercom between the driver through the platform after configuring the digital intercom.


Case Study: Law enforcement Picture13

MDVR Player software

Case Study: Law enforcement Picture14

Case Study: Law enforcement Picture15

Similar vehicles security management

4 channels MDVR solution not only can be used for police vehicle but also can be use for below similar vehicles which need 3/4 channels or 5 channels cameras.


Case Study: Law enforcement Picture16

MDVRs models for police or similar vehicle

JS2-HD-GFW is SD card model which can support 2 pcs SD card and allow you to connect 4 pcs 720p AHD cameras.


JH0-GFW is a mini SSD MDVR with waterproof IP67 function.


JH4-Hybrid-GFW HDD MDVR can support 4 pcs 1080P IP cameras.


JH4-HD-GFW HDD MDVR support 4 channels 1080P AHD cameras.


Most of the clients prefer HDD Mobile DVR than SD card MDVR. They may need to restore more than 20 days video when the SD card MDVR with memory capacity limited. But the SD card MDVR with a smaller size than HDD MDVR so it could be an advantage for these police vehicle with limited space to do MDVR installation.


More informations: https://www.icarvisions.com/law-enforcement/case-study-law-enforcement-678.html

Wednesday, September 23, 2020

Truck video monitoring system solution and case study


1. Container Truck video monitoring system Solutions

(1) Installation


We would like to introduce the most cost-effective products and bring the customer great competitive power!

The most advanced artificial intelligence assists in driving to ensure driving safety. Eight high-definition cameras record video in real-time without any blind spots. The temperature sensor can detect the abnormal temperature of the cargo in time and alarm. The free and professional online platform for provides powerful support for fleet management and real-time monitoring, It can also enable intercom communication between the monitoring centre and drivers.

(2) Platform

IVMS

IVMS has applied the GPS satellite positioning system, Internet, mobile communication, and cloud computer to create a remote monitoring and management platform for customers. Remote real-time video monitoring, GPS map real-time positioning, historical driving track playback, alarm linkage, remote recording, remote video download, remote video playback, electronic fence, and other functions. Provide users with "evidence" data after the event (such as alarm images, videos, recordings, etc.).




iCarview

We also provide APP for IOS Android.

The mobile client (iCarview) creates a friendly operation interface for customers, provides a mobile quick management system, and can view real-time video, vehicle location, tracking playback, and video playback functions of the vehicle at any time, and capture and record real-time violations and alarms.

WEB client

The WEB client provides customers with accurate and detailed data analysis reports. Customers can export PDF, EXCEL and other common forms as needed. Including mileage summary, daily mileage, driving track details, speed, online and offline, IO input alarm, vibration alarm, driver behaviour analysis, temperature, storage media, equipment upgrades, fuel volume, parking and other rich reports.

2. Various products for solutions

AI BOX, DSM+ADAS



3. Introduction of ICARVISIONS

ICARVISIONS is a world-class company focusing on the development and design of the vehicle monitoring systems, integration of artificial intelligence and dedicated to the safety of drivers and passengers. We have successfully applied solutions for logistics and transportation in many countries, which has improved the management efficiency & reduced unnecessary loss of customer’s company.

The AI Box, DSM+ADAS escorts the driver's safety and minimizes the probability of traffic accidents. We have effectively protected the interests of our valued customers and contributed our life-long efforts to social traffic safety.

4. Senior Feature:

  • Customized Product Service
  • 8 Video Split View
  • Enhance Driver Safety
  • Reduce Risk
  • AI Box: DSM & ADAS
  • Work in -40℃~ +80℃
  • Anti-VibrationMIL-STD-810G
  • GPS, 3G/4G, Wi-Fi

more informations: https://www.icarvisions.com/logistics/case-study-truck-674.html

Thursday, September 10, 2020

Cargo Van video monitoring system solution and case study

Industry review for CARGO VAN

Those mid and small-sized vans play an irreplaceable role in the logistic industry and express industry. And company choose this type of vehicle as to the outstanding advantages of the cargo van: size-efficient and cost-effective. While the utility of this multi-seats cargo van is undeniable in many blooming industries, so are the potential risks associated with using these vehicles to transport staff and goods. To protect the people who server and benefit from, it is important to look at the potential risks and highest factors that affecting safety.

For logistic and express company, they will face many claims associated with road safety each year, and vehicle telematics is the only effective way of disputing liability and challenging fraudulent as well as false and legal claims against those company. The vehicle telematics can significantly reduce legal and admin costs including play a vital role in alarm notification and emergency alarms to minimize claims costs.

Cargo Van Solution for Compact type


Description: The first solution is for a compact cargo van for minimized staff and delivery goods. And in this case, the major purpose is to achieve basic functions of Vehicle CCTV of footage recording and GPS data.


How Dose It Work?


Auto-recording: Once a driver turns on the ignition/ACC, the Mobile-DVR will record the footage under record mode: Auto and all footage will be saved in SD card of Mobile-DVR, and the system can auto-delete the oldest footage files to make sure it can record all time.


GPS: The Mobile-DVR will record all GPS data of the vehicle’s driving trace. And each coordinate is synchronized with the footage. And the user can replay the footage by our MDVRPlayer on Windows PC.

MDVRPlayer


MDVRplayer: It is a professional player software with exclusive access to our footage files, it can play the footage while playback the vehicle track at the same time. User can also play footage from multiple channels at the same time.

Also supported:
  • File query
  • Query results
  • Merge footage files
  • Report
  • Footage playback
  • AVI converter
  • Log search

Cargo Van Solution for Full Functions


Description: This solution will bring full functions to the customer and enables access to telematics. With 3G or 4G built-in, the user can not only monitor the camera in real-time but also use the intercom to talk to other fleet driver or central office. The inside camera has the audio function and the user can monitor the real-time audio as well.


How Does It Work?
Intercom: The 3G/4G can transmit data to the server in real-time, which allow the user to use Intercom to communicate with other fleet driver or talk to central office who just need to install IVMS Client to achieve that.


Streaming: One important part about telematics is video streaming where the user at an office can also monitor the activities inside/outside the vehicle with just a simple click. And the telematics data will also storage in our IVMS Server and analyzed into all types of reports.

AI Power

Ai technology is the key role for our future market, and Ai can significantly increase the safety of driver and JAB-G-A is a driving safety warning product designed for commercial vehicles. It includes a front-view dangerous driving warning system based on a monocular camera and an anti-fatigue driving warning system based on face visual recognition technology.

Notice: JAB-G-A cannot work alone; it must work with our MDVR.

ADAS (Front-road):


DSM (driver):

WHO IS ICARVISIONS?


Pioneer of loT industry

ICARVISIONS (SHENZHEN) TECHNOLOGY CO., LTD. is a National High-Tech-awarded company in Shenzhen, China and continually innovating with the development of world-leading algorithms, behaviours and video analytics, machine learning, artificial intelligence (AI) and computer vision.

ICARVISIONS has dedicated to this industry for more than 11 years and proudly to be the Leading provider and manufacturer of Mobile Digital Video Recorders (MDVR) and Mobile Network Video Recorders (MNVR) with an array of accessories which allow us became the pioneer of IoT industry.

China’s leading provider of cloud-based/On-premises video telematics

Our unique and experienced approach to video telematics and IoT is helping tackle some of the most complex challenges faced by the fleet, transport, and insurance sectors. Our cloud-based solutions are underpinned by a device-agnostic, multi-award-winning IoT platform. By providing the highest levels of operational insight, business intelligence and enriched vehicle data, organizations can make strategic mobility decisions.

More informations: https://www.icarvisions.com/logistics/case-study-cargo-van-673.html

Friday, September 4, 2020

Mobile DVR NVR Vehicle MDVR ICARVISIONS Solution For Taxi

Taxi/e-hailing (referred as taxi in follow article) is one of the most important constituent parts of public transportation. The safety and fleet management of taxi has been the focus of almost any city in the world. Vehicle CCTV and IOT, is now most common technology used in public transportation which can bring customers many advantages, now ICARVISIONS has listed few reasons below

1. In case of HDD/SD error

in the driving environment, SD cards and Hard disk on our Mobile DVR can suffer from damage from vibration or not formatted on a regular basis. Fleets using a Mobile DVR often only check when the worst scenario has happened or when vehicle has been involved in a serious incident, which can be too late. With a 3G/4G enabled Mobile DVR, the system will allow DVR send snapshot and footage once alarm been triggered as any issues can be quickly identified and resolved, the staff at monitoring center will able to arrange solution to driver or vehicle immediately.

2. Anytime, any place

With our new web platform, the 3G/4G enabled DVR can be accessed anytime at any platforms. The Client running at web means you can access it at PC, Android, IOS and Mac. With the new state of art platform, user can check the real-time location of vehicle, track playback and footage playback, where user can also benefit all types of reports on web Client.

3. Safety of Taxi

The safety of taxi is vital for company and customer, as this is also the factory people try to solve in years. With in cab CCTV, all time HD recording will make sure noting will be missed during the journey and if any accident take place in the taxi the officer in monitoring center will be informed immediately by the alarms. Also, thank to the new technology, ADAS(Adaptive Driver Assistance Systems) has been used for transportation industry recently, such high-tech sensor will provide new automotive electronic safety systems, it can detect lane departure and road collision warranting, another sensor will monitor driver behaviour like smoking, making phone call and sleepy.

4. Footage

3G/4G enabled Mobile DVR (MDVR) can immediately uploads video footage following an accident where administrator has instant access. Video on demand also allows our customers to download footage remotely for any time period if, for example, a vehicle has been impounded by the police as part of an ongoing investigation.

5. Cost reduction

Every year, taxi company will spend lots of money on fleet safety, insurance and compensation, and Mobile DVR(MDVR) produced by ICARVISIONS will create new system of vehicle surveillance which can enable the new horizon for money saving and better customer experience; because the footage can be used as law evidence and reduce potential compensation that taxi company has to pay, which can also led to better price from insurance company as Taxi with CCTV system will always gain better assessment from insurance company.Some customers may worry the investment on DVR, but the return of investment is much greater.

more information: https://www.icarvisions.com/public-transport/mobile-dvr-nvr-vehicle-mdvr-icarvisions-solution-for-taxi-74.html
