Public Transit bus monitoring system solution and case study

1. Public Transit bus monitoring system solution and case study

Public buses, being a major part of public transportation system, is closely related to the safety of the people’s lives and the development and stability of the social economy. Nowadays it is also a public social security issue that is highly valued. We ICarVisions, based on more than a decade of experience in developing and implementing video surveillance for public transportation, have developed a wide series of powerful solutions that can solve many potential issues which had troubled the fleet operators, drivers, and passengers, to offer a more secure, more efficient and more profits environment for the whole society.

What challenges our mass transit solutions can solve?

• Security Concerns: prevent crime and accidents like vandalism, pickpocketing, traffic incidents; And can also monitor and warn drivers irregular driving behavior like fatigue driving, distracted driving, over-speed, sharp turn, idling, etc.;
• Management Efficiency: real-time GPS tracking, historical tracking data, vehicle Geo-fence on the map, data analyzing from platform reports, arranging more effective bus scheduling;
• More Profit: prohibiting driver abnormal driving habits to save extra oil consumption; controlling measures of fare fraud; reduce network traffic cost for data uploading.

2. Mass Transit Solution System Device Layout

3. Real Case Installation Photos

4. How does the system work?

• Real-time data from recorder installed on each vehicle will be transmitted to the central server system via 3G/4G when the bus is running on the road. People can have access to the recorder real-time data remotely via the IVMS platform and App.
• The central server ( including the WiFi downloading server where the recorded files will be uploaded ) is installed at the facility where the vehicles return and park overnight. And a wireless network is set up at this place which has configured to connect to the central server and provide access points in the bus lot.
• When a vehicle returns to the facility and is in the wireless network range, the Wi-Fi radios on each vehicle automatically connect to the access points - directly transmitting any scheduled, automatic event-based, or end-user requested video contents to the WiFi downloading server wirelessly and cost-effectively.

Computers connected to the server via Cellular/Wi-Fi and using the IVMS client software or MDVRPlayer playback software can quickly and easily search the video database on selected criteria. Besides the basic video contents, end-users can also get extensive email alerts and MDVR system reports like the mileage report, alarm reports speed report, etc., recorder health reports based on the operator’s requested.

5. The bus monitoring solution Details

JH8-HD V2 Series: 8 Channel Hard Disk Mobile DVR

Key Features

• 8x 720P AHD / Analog cameras + 1 x 1080P IP camera Input, totally 9 channels Input
• Store up to 2TBs of high definition recorded video
• One 128GB SD card slot for backup
• Internal G-sensor to detect vehicle collision or crash accident
• GPS, 3G /4G, dual 5.8Ghz Wi-Fi antenna optional
• A built-in VGA port for higher definition video output
• Standard Ethernet Port for one extra IP camera or network connection
• 8 x alarm IO ports, 2 x RS232 ports, 1 x RS485 port and 2 x USB ports
• 8V ~ 36V wide voltage power supply, compatible with all kinds of vehicle power

AHD Series Cameras

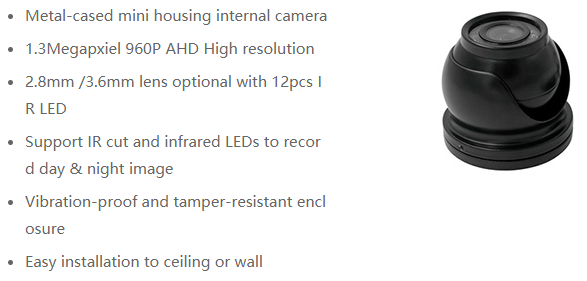

JA-MC225

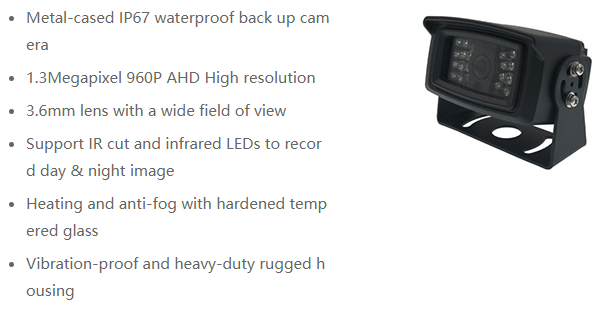

JA-612B

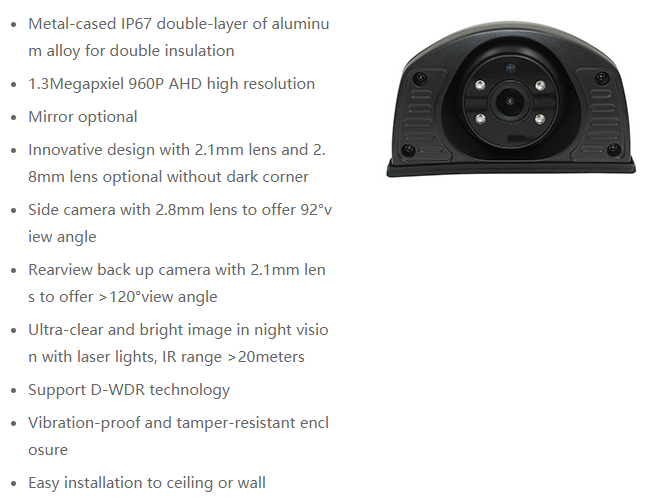

JA-MC019

JA-MC912

6. System Accessories

7. Software System

Recording Playback Software

ICarVisions’ mobile DVR system saves recordings with their private protocol so the recording files can only be played back by MDVRPlayer software which developed by their own RnD team. After log in the software with a correct account name and password, then you will be able to playback the recordings, along with the vehicle GPS tracking history on the map.

Besides the basic playing back recording function, other main features of this software support:

• Merge and split recording files according to your own needs;
• Converter the original special AVI format to standard AVI /MP4 format;
• Choose single or multiple channels to faster / slow-off browse videos.

IVMS ( Intelligent Vehicle Management Software )

The newest IVMS V7 software system is designed and developed by our ICarVisions RnD team independently with our own complete independent intellectual property rights, which includes the new IVMS server software, new IVMS V7 PC, and web platform.

The IVMS server system consists of several cluster sub-servers, they are login server, gateway server, streaming media server, user server, WiFi download server, storage server, database server, and the web server.

The IVMS cluster server system is designed for providing constant and uninterrupted application service for users to access to server-based resources in case any sub-server failed and the other sub-server server programs can continue working well without any affecting.

IVMS V7 PC client, web client, and mobile application are designed to enable users to have access to vehicle real-time video and tracking data 24/7/365 from mobile DVR system directly and easily.

Besides the basic function to provide real-time video and audio, the IVMS platform can also support other multiple features and functions:

More importantly, all the software will be provided for users as free, and they can also enjoy lifetime server license maintenance service and software upgrading service.
